Body material: Aluminium
Filling: Epoxy+Quartz
Lens Material: PMMA
Colors: White, Red, Yellow, Green, Blue
Size: 100*100*20+50mm

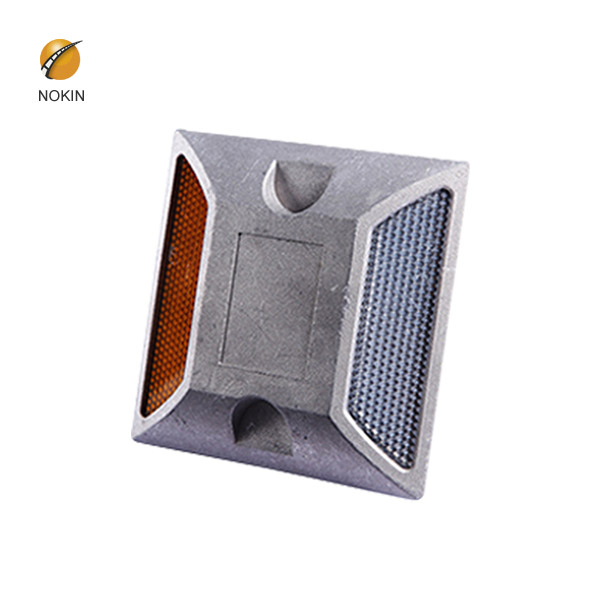

NOKIN Bi-directional Aluminium Road Studs are made of durable aluminium alloy . It is designed in such a way that when installed into the asphalt the fixation element prohibits the road stud from rotating. They have a high degree of visibility during the day because of the white or yellow colour of the body, and during the night because of the prismatic acrylic reflectors that they incorporate. In case of rain they retain their reflective characteristics because of the raised body from the surface of the asphalt.
Aluminium road stud are one of raised pavement markers. Aluminium road stud on motorway is used for dividing the road boundary,for safety,reducing the accidents,made from aluminium alloy attached with the reflective sheet made from the acrylic plastic sheet.This acrylic is a reflective prism glass style and available 1 or 2 sides on road stud. In addition,there will be thin layer of the coated glass in order to enhance the reflective index during night time.
The specifications of Aluminium road studs:
| Model No. | NK-1004 |
| Color | Red, Yellow, Green, Blue, White |
| Lens Material | PMMA |
| Body Material | Aluminium |
| Filling | Epoxy+ Quartz Sand |
| Size | 100*100*20+50mm |
| Temperature | -40~60°C |
| Load capacity | 5 T |
| Packing | 50 pcs / ctn |
| Life span | >3 years |
| Certificates | ASTM & EN1463-1 |
Bi-directional aluminium road studs from NOKIN are meet ASTM D4280 standard, following are some report data:
ASTM D4280 Standard:
Test Distance 100 feet, 0.2° Observation Angle
Units: MilliCandela per Incident Lux (mCd/lux)
| Horizontal entrance angle | White | Red | Yellow |
| Required | |||
| 0 | 279 | 70 | 167 |
| 20° | 112 | 28 | 67 |
| Test data | |||
| 0 | 628 | 185 | 453 |
| 20° | 196 | 132 | 202 |
